ULUF P830 MV Large Upright Freezer
The ARCTIKO ULUF P830 MV is a state-of-the-art ultra-low temperature (ULT) freezer engineered for optimal sample protection and energy efficiency, featuring ARCTIKO’s TRUE DUAL™ technology to ensure reliable performance by maintaining -70°C even in the event of a compressor failure, safeguarding valuable samples.
Manufacturer's List Price:$19,368.75
Typically Ships Within: 2 to 3 Business Days
Product Code :
The ULUF P830 MV is a state-of-the-art ULT freezer designed for optimal sample protection and energy efficiency. Featuring the advanced TRUE DUAL™ technology, this model guarantees reliable performance by maintaining -70°C even if one compressor fails, ensuring your samples remain secure and well-preserved.
The ULUF P830 MV:
- Reaches -80°C in less than 4 hours: Thanks to its powerful cooling system and robust insulation. This ult freezer design ensures rapid temperature recovery and stability even with frequent door access.
- Incorporates natural refrigerants: Providing an eco-friendly solution that minimises energy consumption and enhances operational cost-effectiveness.
- Operates seamlessly across a multi-voltage range of 100 to 240 volts, offering compatibility with global power settings and stability against power fluctuations without requiring additional adapters.
- Equipped with the advanced V700 controller: Which includes all necessary alarms and an ECO mode to optimise energy usage while maintaining excellent temperature uniformity for stored materials.
- Our latest vacuum valve solution includes an automatic pressure equalisation port, ensuring fast and reliable pressure balance. This protects your valuable samples while allowing for effortless opening and operation whenever needed.
- Includes modern Integraline shelves that are perforated and adjustable, supporting up to 50 kg, allowing for flexible and durable storage solutions tailored to your needs.
- Equipped with four portholes for easy cable access or sensor integration without compromising internal temperature stability.
The ULUF P830 MV combines cutting-edge technology with environmental considerations and user-friendly features, making it a top choice for laboratories requiring dependable ultra-low-temperature storage.
| Item code | 1000050 |
| Temperature range (˚C) | -40 / -86 |
| Max. ambient temperature (˚C) | 32 |
| Capacity (L) | 815 |
| Capacity (Cu.ft) | 28.8 |
| Portholes | 4 |
| Exterior dimensions WxDxH (mm) | 1285 x 859,5 x 1999 |
| Interior dimensions WxDxH (mm) | 996 x 620 x 1320 |
| Weight (KG) | 307 |
| Insulation (mm) | 120 |
| Cooling technology | Dual system / static |
| Controller model / probe type | V700 / PT100 |
| Power supply (V) | 100 to 240 |
| Frequency (Hz) | 50 / 60 |
| Power consumption (kWh/24h) | 8,9 |
| Alarm (displayed as text, not codes) | Yes |
| Visual / acoustic alarm | Yes / Yes |
| Power failure alarm | Yes |
| Adjustable high / low-temperature alarm | Yes / Yes |
| Open door alarm | Yes |
| Probe failure alarm | Yes |
| Low battery alarm | Yes |
| Compressor failure alarm | Yes |
| Battery backup for alarms (approx. hrs.) | 72 |
| Voltage-free contact for remote alarm (e.g. GSM alarm module) | Yes |
| Electronic data logger | Yes |
| RS 485 port | Optional |
| USB port for software update & data download | Yes |
| Temperature chart recorder | Optional |
| Display type | 7’’ touch screen |
| Number of optional reference probes | 0 (1 reference probe included as standard) |
| Password protection for turning unit on / off | Yes |
| Temperature graph on display | Yes |
| Vacuum release port | Yes |
| Antifreeze function | Yes |
| Access port for external probe etc. (int. diameter mm) | 12 |
| Light | Yes |
| Lock with key | Yes |
| Castors (total pcs) / castors with brake (pcs) | 5 / 2 |
| Sub lids / inner doors (pcs) | 4 |
| Fixed shelves (pcs) / adjustable shelves (pcs) | 1 / 2 |
| Max. no. of shelves (pcs) / recommended max. no. of shelves (pcs) | 5 / 5 |
| Max. load per shelf (kg) | 50 |
| Total capacity of 50 mm boxes 9×9 dividers (pcs) | 616 |
| Total capacity of 75 mm boxes 9×9 dividers (pcs) | 392 |
| Total capacity of 96 mm boxes 9×9 dividers (pcs) | 280 |
| Max. capacity of samples in Arctiko 10×10 boxes (pcs) | 61.600 |
| Number of compressors | 2 |
| Refrigerant | GG20 |
| Interior cabinet material | Stainless steel |
| Exterior cabinet material | Painted steel |
| Colour (exterior cabinet) | White |
| Foam type | Polyurethane |
| VIP vacuum insulated panels | Yes |
| Shipping weight (kg) | 459 |
| Shipping dimensions WxDxH (cm) | 141 x 127 x 225 |
| Shipping volume (m³) | 4,03 |
*Specifications are liable to change at any time.
Comparison of Models

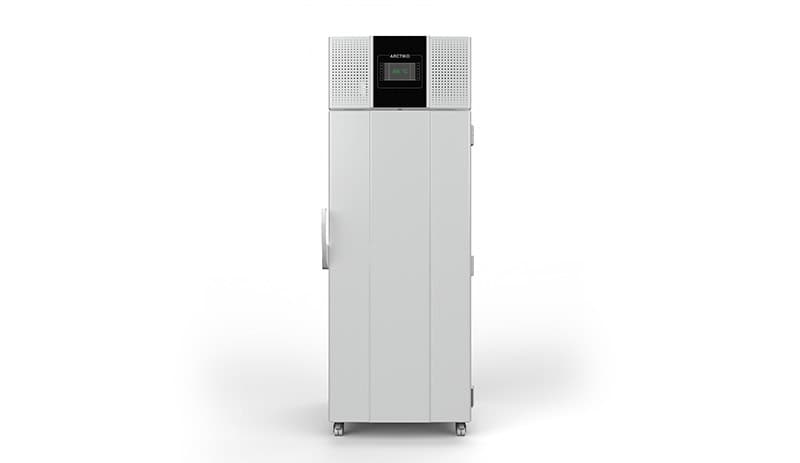

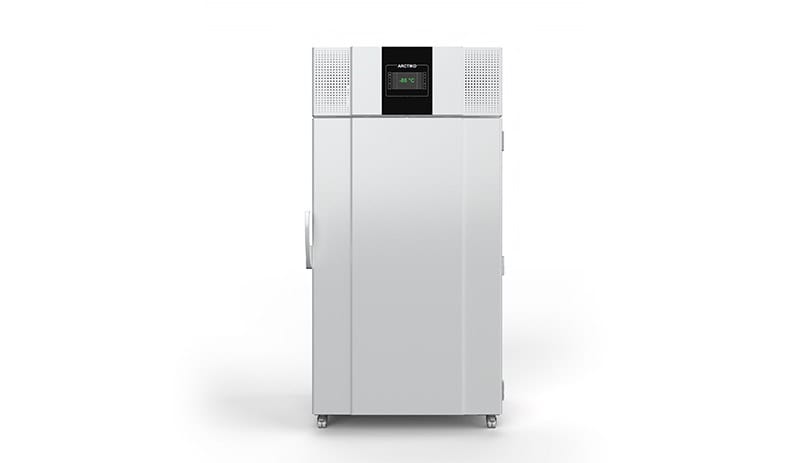

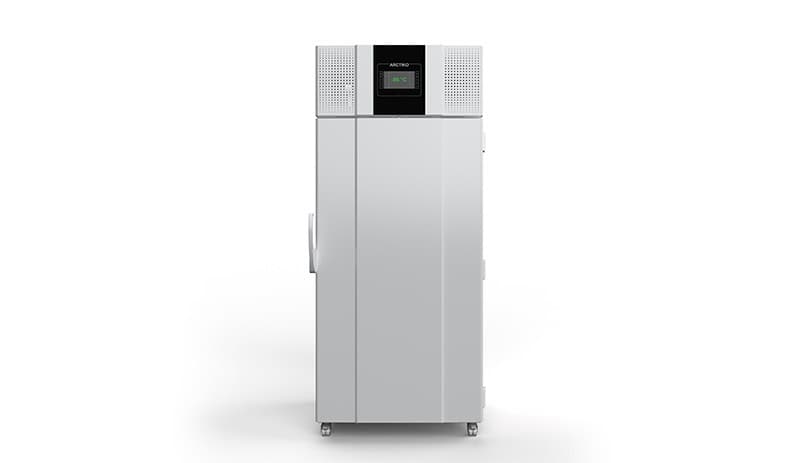

| Spec / Product | Arctiko Integraline ULUF P10MV | Arctiko Integraline ULUF P50MV | Arctiko Integraline ULUF P65MV | Arctiko Integraline ULUF P90MV | Arctiko Integraline ULUF P400MV | Arctiko Integraline ULUF P510MV | Arctiko Integraline ULUF P620MV | Arctiko Integraline ULUF P830MV |
|---|---|---|---|---|---|---|---|---|
| Temperature Range (°C) | -25°C / -86°C | -25°C / -86°C | -40°C / -86°C | -25°C / -86°C | -40°C / -86°C | -40°C / -86°C | -40°C / -86°C | -40°C / -86°C |
| Capacity | 7L | 50L | 54L | 88L | 381L | 500L | 614L | 815L |
| Cooling Technology | Single System / Static Inverter / MV | Single System / Static Inverter / MV | Single System / Static | Single System / Static Inverter / MV | Dual System / Static | Dual System / Static | Dual System / Static | Dual System / Static |
| Refrigerant | Nature R2 | Nature R2 | GG20 | Nature R2 | GG20 | GG20 | GG20 | GG20 |
| Fixed / Adjustable Shelves | N/A | N/A | N/A | N/A | 1 / 2 | 1 / 2 | 1 / 2 | 1 / 2 |
| Exterior Dimensions (W x D x H) | 17.6 x 27.9 x 28.8 in. | 25.8 x 30.6 x 32.9 in. | 25.4 x 27.7 x 32.3 in. | 36.9 x 30.6 x 32.9 in. | 29.7 x 33.8 x 78.7 in. | 35.2 x 33.8 x 78.7 in. | 40.7 x 33.8 x 78.7 in. | 50.6 x 33.8 x 78.7 in. |
| Electrical Requirements | 100–230V, 50/60Hz, 2.35 kWh | 100–230V, 50/60Hz, 3.48 kWh | 110–230V, 50/60Hz, 4.2 kWh | 100–230V, 50/60Hz, 4.67 kWh | 100–240V, 50/60Hz, 7.3 kWh | 100–240V, 50/60Hz, 8.1 kWh | 100–240V, 50/60Hz, 8.4 kWh | 100–240V, 50/60Hz, 8.9 kWh |
| List Price | $8,993.75 | $10,243.75 | $10,243.75 | $11,493.75 | $16,243.75 | $16,806.25 | $17,493.75 | $19,368.75 |
| Our Price | $8,386.67 | $9,552.30 | $9,552.30 | $10,717.92 | $15,147.30 | $15,671.83 | $16,312.92 | $18,061.36 |
