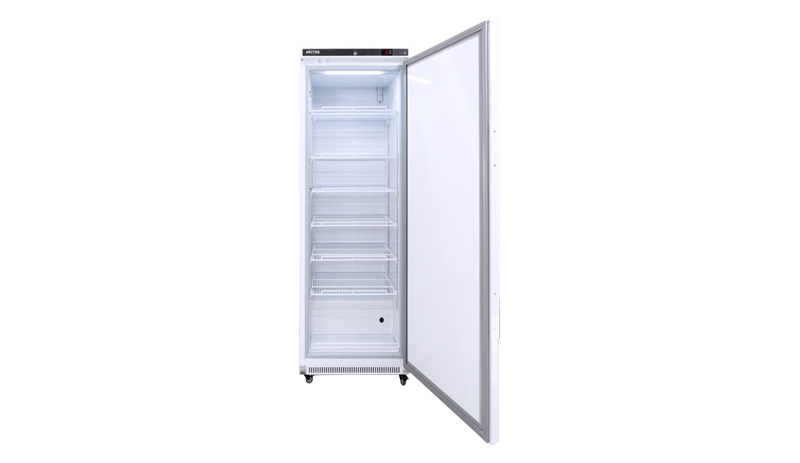

LFE-380 Upright Laboratory Freezer
The ARCTIKO Flexaline LFE 380-US is an upright biomedical freezer boasting a 14.13 cubic foot storage capacity, tailored for the exacting needs of biomedical research, with precise temperature management from -25°C to -10°C.
Manufacturer's List Price:$3,030.75
Typically Ships Within: 2 to 3 Business Days
Product Code :
The Flexaline series of LFE freezers has been expertly engineered to fulfil the vital criteria demanded by biomedical applications, while offering extremely competitive pricing for products of this specification. This range offers a variety of storage capacities, enabling you to find the perfect model for your needs.
ARCTIKO’s Flexaline LFE 380-US is an upright biomedical freezer, designed to meet the rigorous demands of biomedical applications. With an upright design and a substantial 14.13 ft³ capacity, this freezer ensures precise temperature control within the range of -25°C to -10°C. With its low energy consumption, our eco-friendly Flexaline series offers an excellent level of flexibility, security, and reliability.
ENERGY STAR CERTIFIED
Energy Star certified, guaranteeing exceptional energy efficiency and reduced environmental impact, while maintaining superior performance in temperature sensitive storage applications.
INTEGRATED DATA LOGGER
Integrated data logger, providing accurate monitoring of temperature conditions. This allows for precise data recording and analysis, ensuring optimal storage conditions for critical samples and maintaining regulatory compliance.
KEY LOCK SECURITY
Equipped with a secure key lock, providing an added layer of protection for valuable contents and preventing unauthorized access. This feature ensures the integrity and confidentiality of stored items, making it ideal for environments where security is paramount.
ALARM FUNCTIONS
Visual and acoustic alarms for high/low temperature, open door, probe failure, power failure and low battery conditions ensure that you can react quickly in the unlikely event of a power, equipment or process issue.
SNAP/EPA COMPLIANT REFRIGERANT
Utilizes refrigerants that are fully compliant with the Environmental Protection Agency (EPA) and the Significant New Alternatives Policy (SNAP) regulations, ensuring environmentally responsible operation without compromising performance or safety.
| Item Code | 1900042-01 |
| Temperature Range (°C) | -25 / -10 °C |
| Temperature Range (°F) | -77 / -50 °F |
| Max. Ambient Temperature (°C) | +32 |
| Capacity (L) | 400 |
| Capacity (Cu.FT) | 14.13 |
| Exterior Dimensions WxDxH (Mm) | 608 X 698 X 1840 |
| Exterior Dimensions WxDxH (Inches) | 24 X 28 X 72 |
| Interior Dimensions WxDxH (Mm) | 500 X 540 X 1550 |
| Interior Dimensions WxDxH (Inches) | 20 X 21 X 61 |
| Weight (KG) | 70 |
| Weight (Lb) | 154 |
| Insulation (Mm) | 50 |
| Insulation (Inches) | 1.97 |
| Cooling Technology | Static Cooling |
| Controller Model / Probe Type | Honker / NTC |
| Power Supply (V) | 110 |
| Frequency (Hz) | 60 |
| Power Consumption (KWH/24H) | 2.3 |
| AMP (A) | 1.9 |
| Power (Watt) | – |
| Horse Power (HP) | – |
| Alarm Display As Text – Not Codes | No |
| Visual / Acoustic Alarm | Yes / Yes |
| Power Failure Alarm | Yes |
| Adjustable High/Low Temperature Alarm | Yes / Yes |
| Open Door Alarm | Yes |
| Probe Failure Alarm | Yes |
| Low Battery Alarm | Yes |
| Compressor Failure Alarm | – |
| Voltage Free Contact For Remote Alarm (E.G. GSM Alarm Module) | Yes |
| Electronic Data Logger | Yes |
| RS 485 Port | – |
| USB Port For Software Update & Data Download | Yes |
| Temperature Chart Recorder | – |
| Display Type | Digital |
| Number Of Optional Reference Probes | N/A |
| Password Protection For Turning Unit On/Off | – |
| Temperature Graph On Display | – |
| Automatic Defrost | – |
| Antifreeze Function | – |
| Vacuum Release Port | – |
| Access Port For External Probe Etc. (Int. Diameter Mm) | Yes (0.79) |
| Light | Yes |
| Lock With Key | Yes |
| Castors (Total Pcs) / Castors With Brake (Pcs) | 4 / 2 |
| Fixed Feet (Pcs) / Levelling Feet (Pcs) | – |
| Sub Lids Or Inner Doors (Pcs) | – |
| Reversible Doors (Pcs) | Yes |
| Fixed Shelves (Pcs) / Adjustable Shelves (Pcs) | 0 / 7 |
| Max. No. Of Shelves (Pcs) / Recommended Max. No. Of Shelves (Pcs) | 7 / 7 |
| Max Load Per Shelf (Kg) | 53 |
| Adjustable Drawers (Pcs) | – |
| Max. No. Of Adjustable Drawers (Pcs) | – |
| Max. Load Per Adjustable Drawer (Kg) | – |
| Max. No. Of Blood Bags – By Standard No. Of Adj. Drawers (Pcs) | – |
| Max. No. Of Blood Bags – By Max. No. Of Adj. Drawers (Pcs) | – |
| Basket (Pcs) | No |
| Max. No. Of Baskets (Pcs) | – |
| Max. Load Per Basket (Kg) | – |
| Total Capacity Of 50 Mm Boxes 9×9 Didviders (Pcs) | – |
| Total Capacity Of 75 Mm Boxes 9×9 Didviders (Pcs) | – |
| Total Capacity Of 96 Mm Boxes 9×9 Didviders (Pcs) | – |
| Number Of Compressors | 1 |
| Refrigerant | R290 |
| Interior Cabinet Material | Pre-coated Aluminum Sheet |
| Exterior Cabinet Material | Powder Coated Galvanized Steel |
| Colour (Exterior Cabinet) | White |
| Foam Agent | Cyclopentane |
| Shipping Weight (Kg) | 92 |
| Shipping Weight (Lb) | 203 |
| Shipping Dimensions WxDxH (Cm) | 66.1 X 66.1 X 200.7 |
| Shipping Dimensions WxDxH (Inches) | 26 X 26 X 79 |
| Shipping Volume (M³) | 1 |
| Shipping Volume (Cu.FT) | 35.31 |
Comparison of Models
| Spec / Product | Arctiko Flexaline LFE 60-US | Arctiko Flexaline LFE 125-US | Arctiko Flexaline LFE 285-US | Arctiko Flexaline LFE 380-US | Arctiko Flexaline LFE 490-US |
|---|---|---|---|---|---|
| Temperature Range | -25°C to -10°C | -25°C to -10°C | -25°C to -10°C | -25°C to -10°C | -25°C to -10°C |
| Capacity | 2.29 cu. ft. (65L) | 4.17 cu. ft. (118L) | 10.06 cu. ft. (285L) | 14.13 cu. ft. (400L) | 17.34 cu. ft. (491L) |
| Refrigerant | R600a | R600a | R290 | R290 | R290 |
| Shelves | 2 adjustable shelves | 3 adjustable shelves | 6 adjustable shelves | 7 adjustable shelves | 7 adjustable shelves |
| Data Logger | Integrated electronic data logger with USB port for download | Integrated electronic data logger with USB port for download | Integrated electronic data logger with USB port for download | Integrated electronic data logger with USB port for download | Integrated electronic data logger with USB port for download |
| Internal Dimensions (W x D x H) | 16 x 18 x 17 in. (40.6 x 45.7 x 43.2 cm) | 20 x 18 x 22 in. (50.8 x 45.7 x 55.9 cm) | 20 x 18 x 51 in. (50.8 x 45.7 x 129.5 cm) | 20 x 21 x 61 in. (50.8 x 53.3 x 154.9 cm) | 25 x 21 x 65 in. (63.5 x 53.3 x 165.1 cm) |
| Electrical Requirements | 110V, 60Hz, 2.0A, 70W | 110V, 60Hz, 2.5A, 110W | 110V, 60Hz, 2.3A, 157W | 110V, 60Hz, 2.3A, 170W | 110V, 60Hz, 2.3A, 160W |
| List Price | $1,275.75 | $1,478.25 | $2,558.25 | $3,030.75 | $3,705.75 |
| Our Price | $1,189.64 | $1,378.47 | $2,385.57 | $2,826.17 | $3,455.61 |
