Features

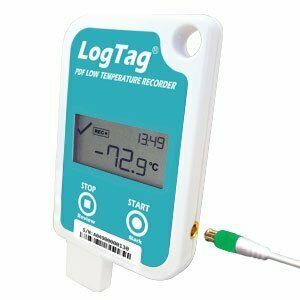

The LogTag® UTREL-16F is compatible with the ST10 external probe.
The display shows recording status, current temperature, alarm status of up to six user-configurable alarms and duration of any temperature excursions.

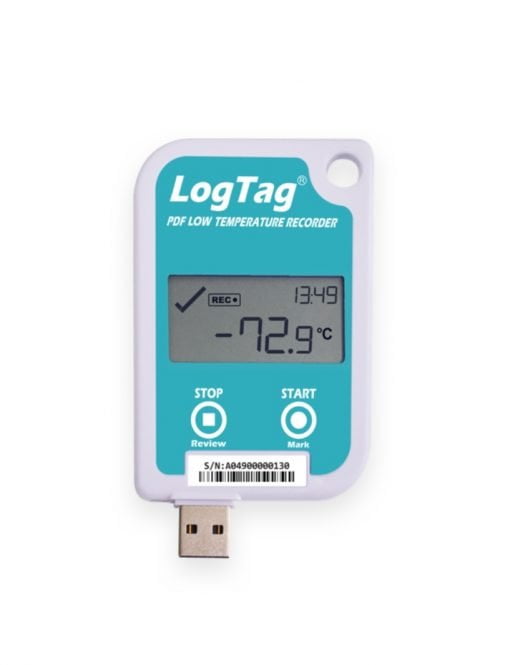

When the UTREL-16F is connected to a computer using the integrated USB plug, a detailed PDF report of the recorded temperature data and alarms can be automatically generated without the need for extra accessories and proprietary software.
For more detailed data analysis, the UTREL-16F also creates an encrypted data file compatible with LogTag Analyzer® operating software and data management options.
(Silica sand recommended for temperatures below -40ºC for Buffer Assembly)
*Buffer bottle & Silica Sand is not included
ST10M-15 external probe is used with Buffer bottle
| Product Model | UTREL-16F. |
| Sensor Measurement Range | -90°C to +40°C (-130°F to +104°F). |
| Operating Temperature Range | -30°C to +60°C (-22°F to +140°F). |
| Storage Temperature Range | 0°C to +40°C (32°F to +104°F). |
| Rated Temperature Reading Resolution | 0.1°C (0.2°F) for measurements -80°C to 10°C (-112°F to 50°F). 0.2°C (0.4°F) for measurements 10°C to 20°C (50°F to 68°F) and -90°C to -80°C (-130°F to -112°F). 0.3°C (0.5°F) for measurements 20°C to 30°C (68°F to 86°F). 0.5°C (0.9°F) for measurements 30°C to 40°C (86°F to 104°F). LogTag Analyzer® currently displays to one decimal place of °C or °F. The native resolution is what is stored in the LogTag®. |
| Rated Temperature Reading Accuracy | Better than ±0.5°C for -20°C to +10°C (-4°F to 50°F) Better than ±0.7°C for -50°C to -20°C (-58°F to -4°F) and +10°C to +30°C (50°F to 86°F) Better than ±1°C for -80°C to -50°C (-112°F to -58°F ) and +30°C to +40°C (86°F to 104°F) Better than ±1.8°C for -90°C to -80°C (-130°F to -112°F) |
| Recording Capacity | 16,129 temperature readings. 112 days @ 10min logging, 168 days @ 15min logging. Statistics memory (for display on LCD): Max/Min values and alarm duration values. |
| Sampling Interval | Configurable from 30 seconds to 18 hours. |
| Logging Start Options | Push button start or specific date & time. Optional start delay. |
| Alarms | Three configurable upper and three configurable lower alarms. |
| Recording Indication | “REC” symbol on LCD. |
| Download Time | Typically with full memory (16,129 readings) in less than 30 seconds from time of insertion to availability of PDF report. Typically less than 10 seconds from time of insertion to availability of LTD file in LogTag® Analyzer (if configured). |
| Environmental | IP61 (when vertically mounted or hung with USB dust-cap in place). |
| Power Source | CR2450 3V LiMnO2 (Fixed battery). |
| Battery Life | Storage life of 1 year before ‘start’ (if it is hibernation mode), followed by: 2 years of normal use (based on 15 minute logging, download data monthly). |
| Real Time Clock | Built-in real time clock. Rated accuracy ±25ppm @ 25°C (equivalent to 2.5 seconds/day). Rated temperature coefficient is -0.034 ±0.006ppm/°C (I.e typically +/- 0.00294 seconds/day/°C). |
| Connection Interface | USB 2.0, A-type plug. |
| Software | PDF Reader, LogTag® Analyzer 3.1.9 or higher. |
| PDF Report | One page report with trip and alarm summary. Multi-page report with list of readings, including date and time. |
| Size | 93mm(H) x 54.5mm(W) x 8.6mm(T) including protective USB cap. |
| Weight | 39g. |
| Case Material | Polycarbonate. |
