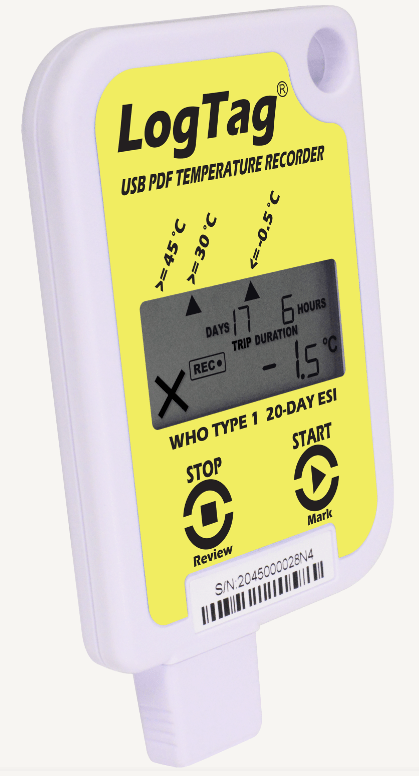

USRID-16WC
WHO Type 1 alarm configuration for freeze sensitive vaccines:
- DTP, DT
- TT, Td
- HepB, IPV, HPV
- Liquid Hib and combination vaccines
- Pneumo (other than Prevenar)

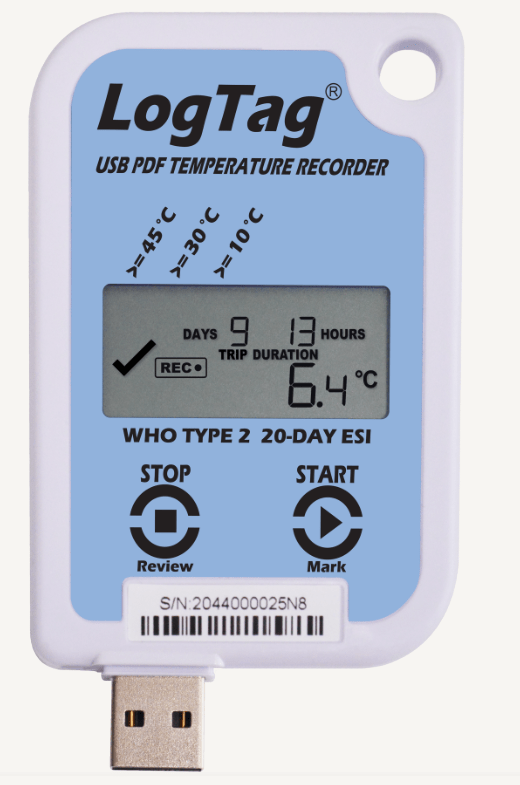

USRID-16WA/B
WHO Type 2 alarm configuration suitable for the international shipment of:
- BCG, lyophilized Hib, OPV
- Measles, MR, MMR, Rabies
- Meningitis (polysaccharide)
- Yellow fever vaccines
- Rotavirus (other than rotateq)
- WHO PQS pre-qualified E006/070.
- Stores 40 days of temperature recordings data, factory set with a 5 minute logging interval.
- Automatically generates a PDF report and an Excel data file – no special download software required.
- Display showing temperature and alarm status of up to 3 alarms.
Features
Designed as a Single-use, cost effective & reliable temperature recorder, the LogTag® USRID-16W range measures and stores 40 days of real time temperature readings over a measurement range of -30°C to +60°C.
The LogTag® USRID-16W range is pre-qualified for World Health Organization (WHO) PQS E006 Standards. (E006/070).
The USRID-16W plugs directly into the computer USB for easy data download. A fully detailed PDF report is generated with the option to download the data using the freely available LogTag® Analyzer software for a more detailed analysis.
USRID-16WC
WHO Type 1 alarm configuration for freeze sensitive vaccines:
- DTP, DT
- TT, Td
- HepB, IPV, HPV
- Liquid Hib and combination vaccines
- Pneumo (other than Prevenar)
USRID-16WA/B
WHO Type 2 alarm configuration suitable for the international shipment of:
- BCG, lyophilized Hib, OPV
- Measles, MR, MMR, Rabies
- Meningitis (polysaccharide)
- Yellow fever vaccines
- Rotavirus (other than rotateq)
| Product Model | USRID-16WA/B USRID-16WC |
| Sensor Measurement Range | -30°C to +60°C |
| Operating Temperature Range | -30°C to +60°C |
| Storage Temperature Range | -30°C to +55°C with device de-activated |
| Rated Temperature Reading Accuracy | Better than ±0.5°C for -5°C to +30°C Better than ±0.8°C or better for -30°C to +60°C Actual performance is typically much better than the rated values. Accuracy figures can be improved by recalibration. |
| Rated Temperature Reading Resolution | Better than 0.1 °C between -20 °C to +55 °C LogTag Analyzer currently displays to one decimal place of °C. The native resolution is what is stored in the LogTag® |
| Sensor Reaction Time | Typically less than 7 minutes (T90) in moving air (1m/s) |
| Recording Capacity | 11,520 temperature readings (40 days at 5 minute logging) |
| Sampling Interval | Factory set at 5 minutes (non-changeable) |
| Logging Start Options | Push button start |
| Logging Stop Options | Push Button Stop Stop after the logger has completed 11,520 temperature readings (40 days at 5 minute logging) |
| Alarms | 3 alarms set at WHO requirements |
| Download Time | Typically with full memory in less than 20 seconds from time of insertion to availability of PDF report. Typically less than 10 seconds from time of insertion to availability of LTD file in LogTag® Analyzer 3 |
| Environmental | Ingress rating: IP65 with USB cap fitted Shock and Vibration: Unit shall pass a relevant level of shock and vibration based on the requirements of the Indicator specification E006/ TR07.3. Environmental resistance: Labels and plastics shall be resistant to a range of chemicals and UV, including rubbing alcohol and petrol fuel. |
| Power Source | CR2032 3V LiMnO2 Battery (Non-Replaceable) |
| Battery Life | Minimum storage life of 1 year 6 months before ‘start’ Monitoring period: 40 days Minimum accessibility (display) period of 6 months after ‘stopped’ |
| Real Time Clock | Built-in real time clock Rated accuracy ±25ppm @ 25°C (equivalent to 2.5 seconds/day) Rated temperature coefficient is -0.034 ±0.006ppm/°C (I.e typically +/- 0.00294 seconds/day/°C) |
| Connection Interface | USB 2.0, A-type plug |
| Software | PDF Reader, LogTag® Analyzer 3 or higher |
| Size | 93mm(H) x 54.5mm(W) x 8.6mm(T) including protective USB cap |
| Weight | 39g |
| Case Material | Polycarbonate |
